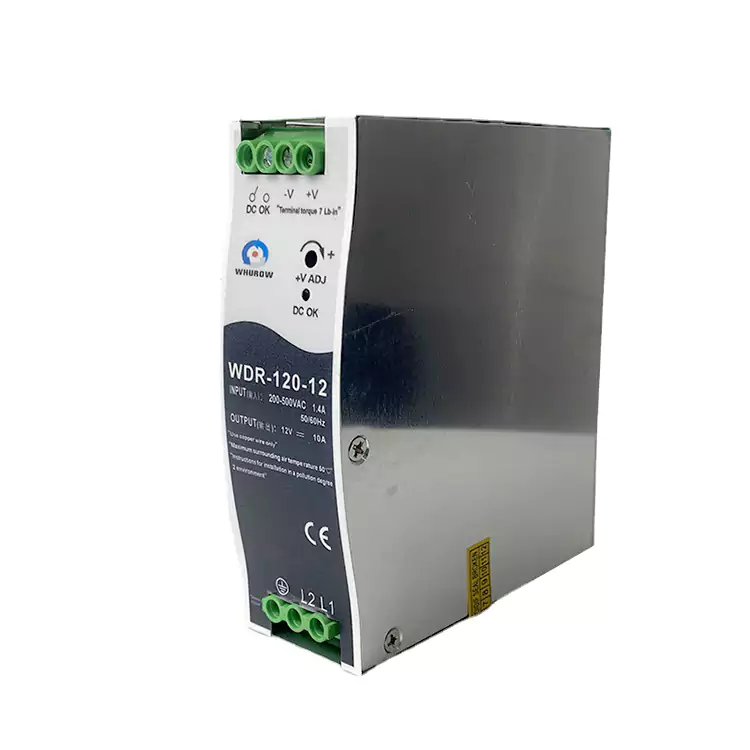

WDR-120W DIN Rail Mounted Switch Power Supply

The WDR-120W DIN Rail Mounted Switch Power Supply is a dedicated three-phase input power unit engineered for industrial environments powered by three-phase electricity. Rated at 120W, it supports a wide three-phase AC input range of 200~480V, capable of directly converting standard industrial 380V three-phase mains power into smooth, stable DC voltage. Designed with robust industrial circuitry and a fully enclosed all-metal casing, this power supply boasts high energy conversion efficiency, an integrated 3-phase active PFC module, full-spectrum circuit safeguards, and reliable performance across a broad temperature span. Designed for quick snap-on installation on standard 35mm DIN rails, it effectively conserves cabinet internal space. It is extensively utilized globally in CNC machine tools, lifting machinery, large electrical control cabinets, and heavy-duty automated production lines.

Product Feature

✅ Wide 3-Phase Voltage Input Works with global 380V three-phase industrial power. No extra transformer required, simplifying cabinet wiring and factory power distribution.

✅ 3-Phase Active PFC Included High power factor reduces grid harmonics, meets international EMC standards and is eco-friendly for power grids.

✅ All-Metal Casing & Great Heat Dissipation Optimized thermal design lowers heat buildup during continuous work and lengthens service time.

✅ Full Safety Protection System Overvoltage, overcurrent, short-circuit and overload protection included; auto power-off safeguards precision industrial electrical parts.

✅ Wide Working Temperature Scope Consistent performance under hot and cold harsh workshop conditions.

✅ Quick DIN Rail Installation Spring clip design enables fast mounting & removal on 35mm DIN rails for easy installation and upkeep.

✅ High Power Efficiency Advanced circuits save electricity consumption and cut customers’ long-term running costs.

Wide Application Scenarios

·  Control cabinets for CNC machine tools

·  Hoisting and lifting machinery & equipment

·  Large-scale automated production lines

·  Three-phase industrial electrical control systems

·  Heavy-load automated industrial machinery

·  Centralized three-phase power distribution cabinets for factories

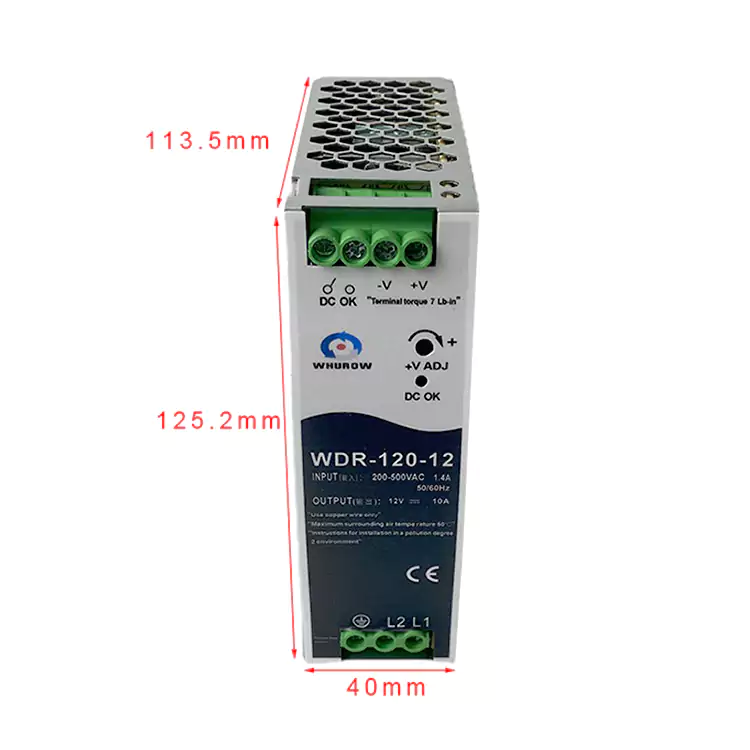

Product Size

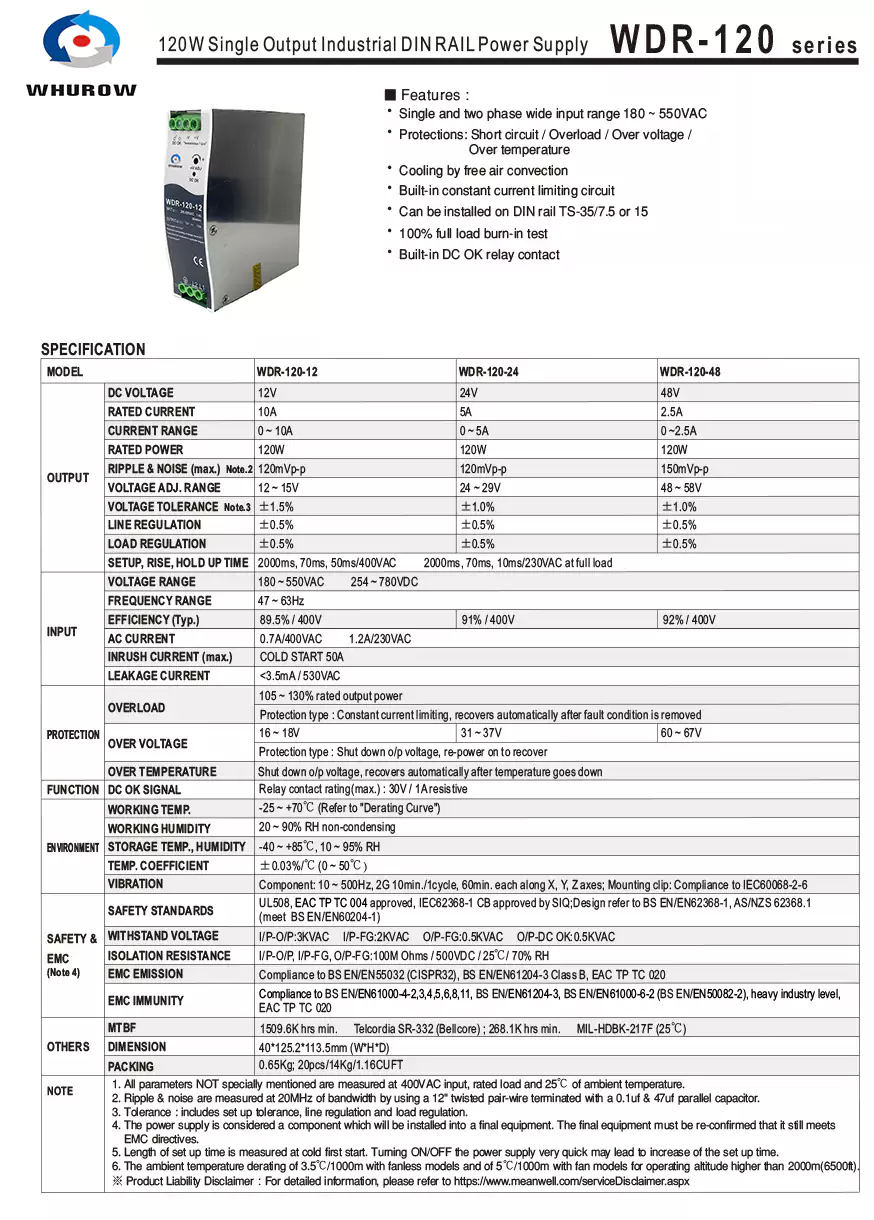

Specification
